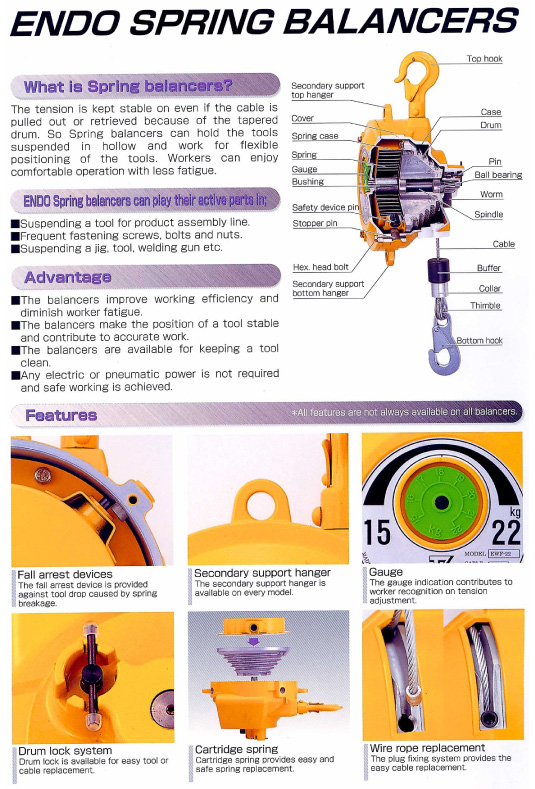

Spring balancer can hold the Pneumatic tools , Weld Guns suspended in the hollow and work for flexible positioning of the tools & weld guns.  Workers can enjoy comfortable operation with less fatigue.  Endo Spring balancers can play their active role in suspending a  tool and machines for car body shops and product assembly line, frequent fastening screws, bolts and nuts etc.,
Advantages of Endo Spring Balancer

• The balancers improve working efficiency and diminish worker fatigue.
• The balancers make the position of a tool stable and contribute to accurate work.
• The balancers are available for keeping a tool clean.
• Any electric or pneumatic power is not required and safe working is achieved.

Page1 Page 2

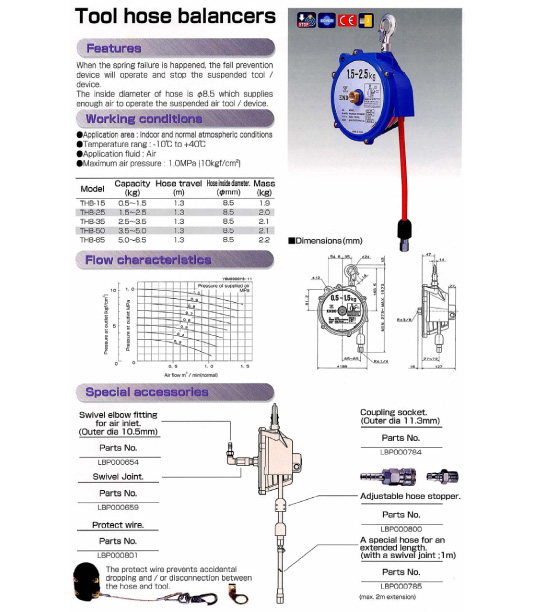

We bring forth for our clients an exclusive range of Tool Hose Balancer that helps in preventing the fall of the device, in case of a spring failure. The tool suspends the device in the air and thus, provides it with complete safety from any sort of damage. This unique Tool Hose Balancer is pioneered by Endo and is an extremely popular product in the market.

Page 1 Page 2

• Spring is equipped inside of hose reel. This structure will be able to wind the hose automatically. (except electric models)
• Able to storage the hose and make more space for working space.
• Applicable liquids: air, water, oil and etc.
• Hose reel is applicable outside.
• Easy installation and start of operation.
• Corrosion and water proof
• Silver brush would prevent and reduce the noise by conductors friction.
• This small spring cable reel is able to correspond for critical space requirements.
• Outside Dia of 240mm and 275mm.
• Maximum winding length: 5m - 12m
• For short range of mobile equipment in horizontal and vertical operation.
